| MOQ: | 1 set |
| Price: | Customized |
| Standard Packaging: | Customized |
| Delivery Period: | Customized |
| Payment Method: | TT,L/C |
| Supply Capacity: | Customized |

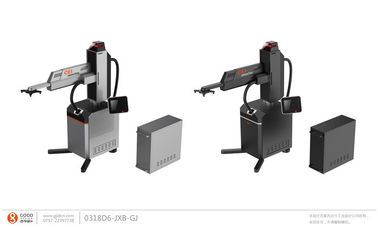

Custom High Speed Small Industrial Robots Adjustable 500mm Working Stroke
Quick Detail:
Place of Origin Guangdong, China (Mainland)
Brand Name CEI KINTE
Condition New
After-sales Service Provided Engineers available to service machinery overseas
name 6 axis robot
The robot used in sheet-metal workshop mainly have two type:DF-5045-S1 and DF-5045-S2
1. All the business of Kinte is international and abroad only.
2. We have a large team and we provide one-station service
Description:
6 axis robot
We have all kinds of robot which can help you achieve robotization,and we have lots of video of robot ,contact me freely if you have any interested.
Specifications:
|
Model |
DF-5045-S1 |
DF-5045-S2 |
|
Power |
220V±10%,50Hz |
220V±10%,50Hz |
|
Rated power |
0.5KW/H |
0.8KW/H |
|
Working environment |
Temperature:0-45℃ Humidity:45%-65% |
Temperature:0-45℃ Humidity:45%-65% |
|
Swinging angle |
180º |
180º |
|
Working stroke |
For moving up and down 500mm, for moving front and aid 400mm(adjustable) |
For moving up and down 500mm, for moving front and aid 700mm(adjustable) |
|
Beam rotation Angle |
360º |
360º |
|
Fetch the chuck rotation Angle |
360º |
360º |
|
Production efficiency (depend on the size of product) |
400—800pcs/H |
400—800pcs/H |
|
Material supplying precision |
±0.2 |
±0.2 |
|
Working radius |
1100mm-1500mm |
1500mm-2200mm |
|
Sucking weight |
Less than 3kg |
Less than 13kg |
|
Machine size(L*W*H) |
920*600*1750 |
920*600*1750 |
|
Weight |
About 200kg |
About 400kg |
|
|
|
|
Competitive Advantage:
1. Five-axis linkage technology at a high speed
This series Robot adopt Five-axis linkage technology at a high speed and we have the independent patent technology.The operation efficiency can obtain 8-12times/min,which is in the international advanced level.
2. Precise positioning technology
This series Robot adopt positive and negative gear back gap buffer which is search and developed independently.it is equipped on the planetary gear reducer,the positioning error value is control within + / - 0.2 mm,this can get the international advanced level.
Suitable for DF-5045-S1 robot small and medium-sized hardware examples
3. Intelligent motion control technology
Adopt intelligent motion control card,perform the arc motion curve;it can identify the double material;Intelligent identification punch stamping twice or more,which can protect the security of robot and punching machine;the storage can obtain 100units product information.
4. Vacuum stable adsorption technology
Adopt inner vacuum compressor manner,providing a independent,stable air source for the vacuum absorption of robot tongs.This can making the use of the robot not affected by the air source of the ground,it can also guarantee the safety and stability of the tongs vacuum scratch,which can avoid the workpieces’ falling down in the way.
suitable for DF-5045-S2 middle and largest hardware samples
5. Core parts
This series robot is adopted PLC,servo,motor,vacuum pump etc all come from Omron or Taida,Japan morita,America AIRTECH, lead screw,straight guide rail,air cylinder etc is MISUMI,HIWIN, Airtac etc international brand.
6 axis robot
CEI robot is mainly used for material handling, it is a good way to replace man power from some dangerous work
|
|
